Global DEF System Portfolio

Polyethylene

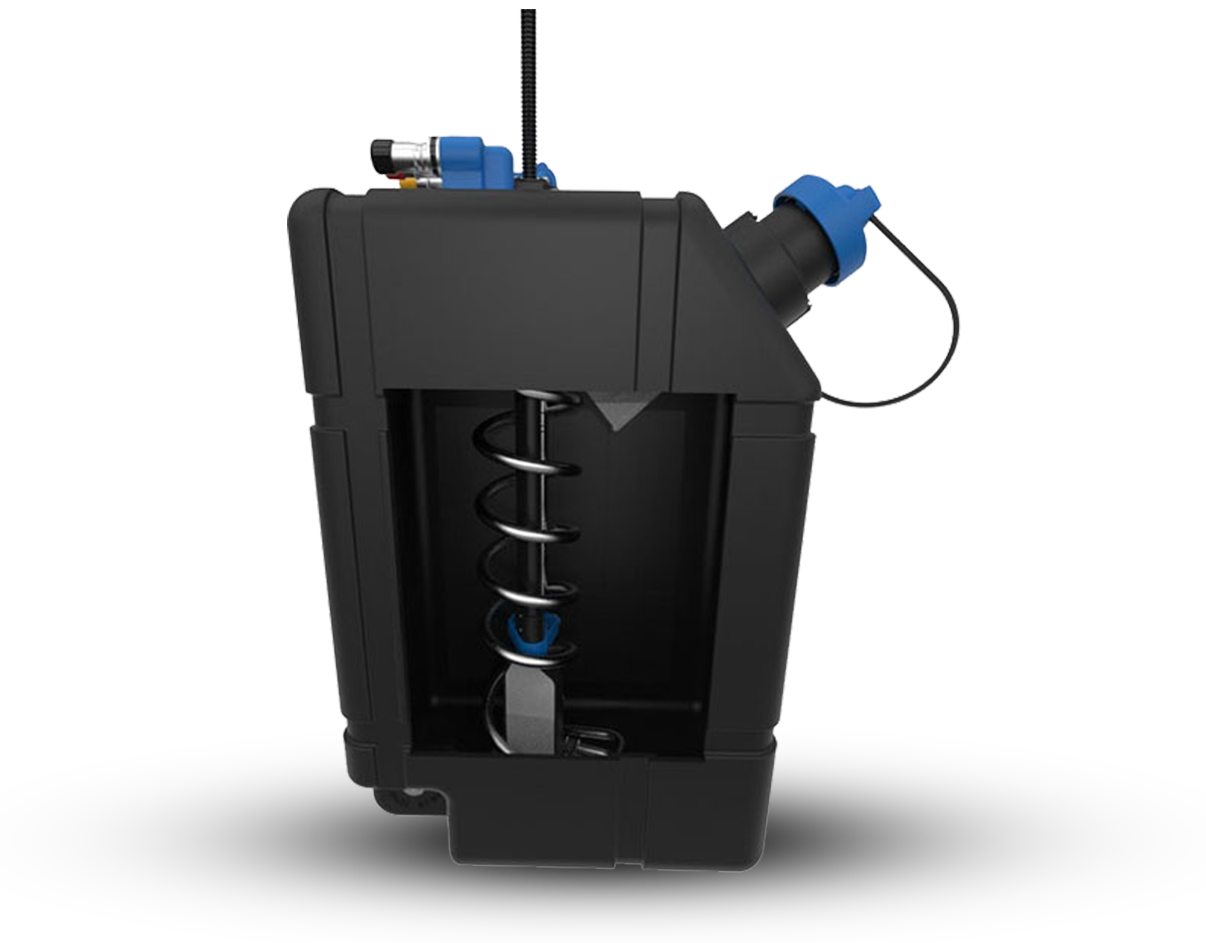

Polyethylene Reservoirs/Tanks

Landscape and Portrait orientations with integrated mounting grooves

Standard Volume Options
  • 11L (3 US gallon)
  • 19L (5 US gallon)
  • 38L (10 US gallon)
  • 57L (15 US gallon)
  • 95L (25 US gallon)
Polyethylene

Multi-Function
Header Units

Options

  • PhoenixTM Tri-Function Sensor*
  • Heating Coil
  • Coolant Control Valve
  • Vented or Non-Vented
  • Global Tank to Header Interface
  • Suction Filter
  • * Standard for India market due to high heat conditions

Filler Cap &
Tank Adapters

Options

  • Locking or Non-Locking Caps
  • Vented or Non-Vented Caps
  • Inlet Fill Port Strainers
  • Magnetic Fill Restrictor

Additional reservoir shapes, fluid capacities, & rotomold / blowmolded types are available through custom engineering with IPL Shaw Solutions

Multi-FunctionHeader Unit

Multi-Function Header Unit

Coolant Control valve

  • Integrated shutoff valve to control the engine coolant flow used for DEF thaw in colder climates -11° C
  • Superior to inline units as no special mounting required. It’s a simple & integrated unit

Tank Interface

  • 4 tank adapter options available for universal connection to meet standard tank interfaces

Optional Heat Exchanger

  • Engine coolant powered stainless steel helical design
  • Optimized design for quick thaw in environments that have temperatures -11° C to -40° C

Tri-Function Sensor

  • Accurate DEF level, temperature and concentration outputs in the most severe environments
  • CANBUS output
  • Meets local and federal requirements
  • DEF level and quality are precise to meet the most stringent NOx level requirements

Suction Filter

  • Maintains clean DEF for dosing pump and injectors
  • Serviceable
  • 40µ and 100µ filtration levels available for flexibility depending on environment and engine requirements

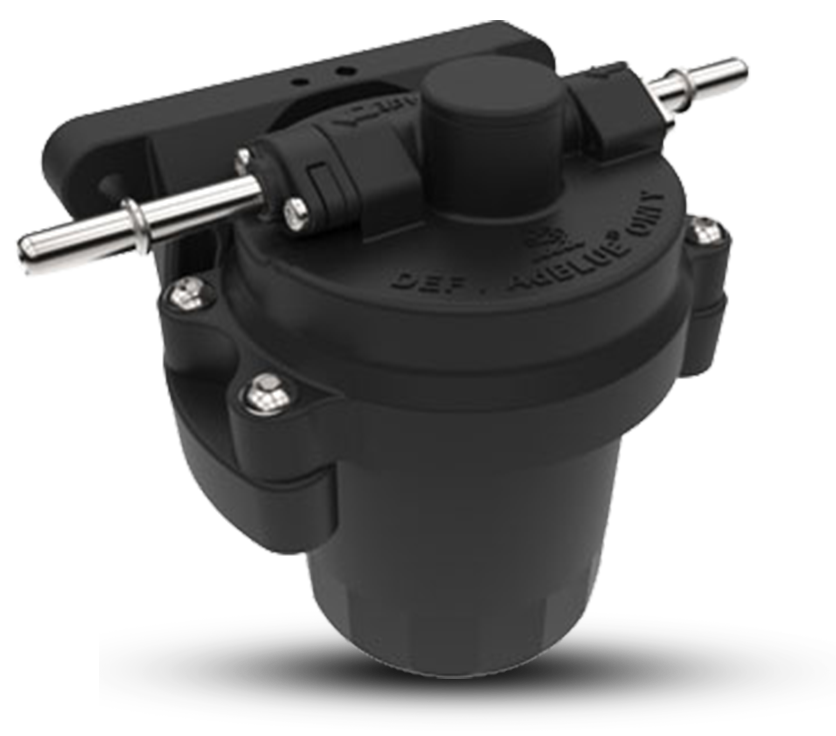

DEF ACCESSORIESInline DEF Filtration

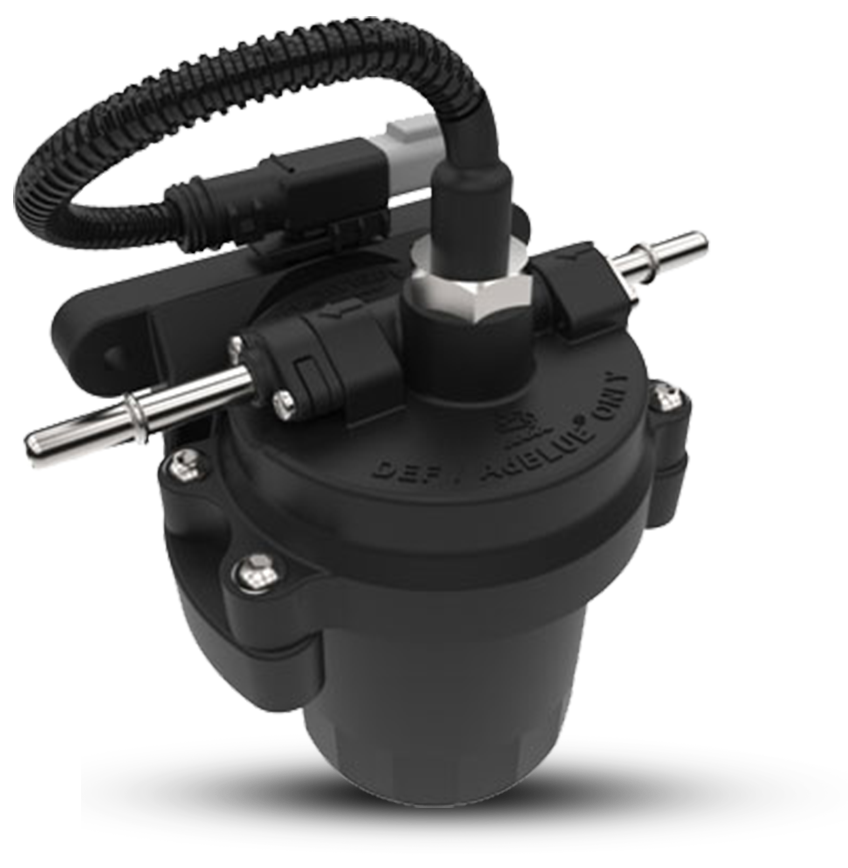

DEF Filtration
DEF Filtration

EXTEND SERVICE INTERVALS UP TO 5X AS COMPARED TO IN TANK SUCTION FILTERS

  • Use in series with Shaw 100µ suction filter, fill port strainer, and filtered DEF cap

MINIMIZE DOSING PUMP DROPOUTS

  • Patented inlet fitting air mitigation feature controls release of air in AdBlue

LOWER MAINTENANCE COSTS

  • Easy access filter cartridge replacement external to DEF tank

IMPROVE SYSTEM RELIABILITY WITH HIGH QUALITY COMPONENTS

  • Stainless steel def fittings per SAE j2044
  • 20µ and 40µ options @ 98% efficiency

INTEGRATED MOUNTING BRACKET ALLOWS FLOW IN BOTH DIRECTIONS

  • Universal mounting enables hose routing for installation on either side of the vehicle

INTEGRATED MOUNTING BRACKET ALLOWS FLOW IN BOTH DIRECTIONS

  • Electrically heated (12V/24V) option for seasonal temperatures that fall below -11°c
Inline Filter Configurations
  • Heated
  • Non-Heated

DEF AccessoriesCaps

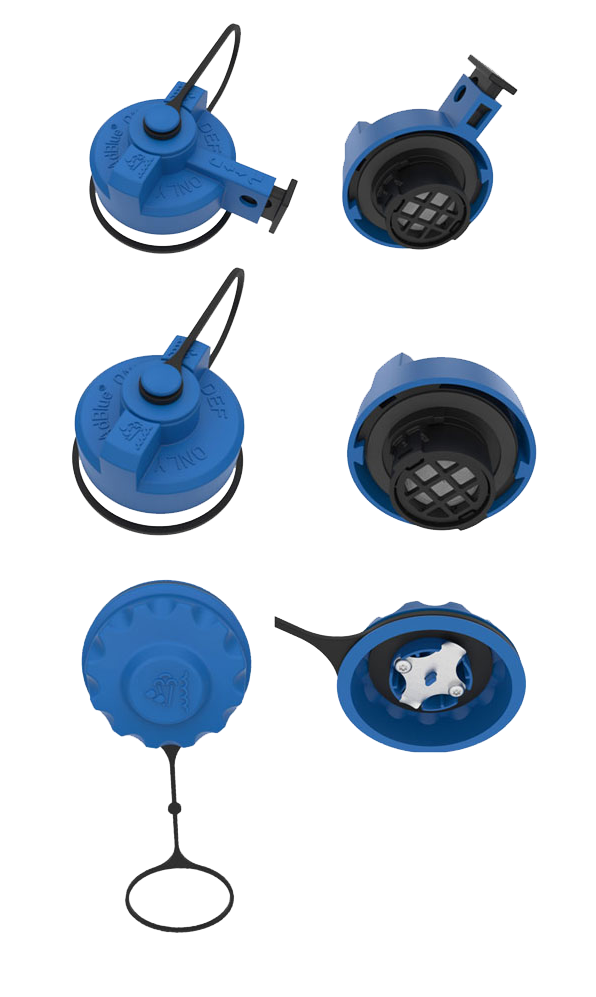

DEF Accessories CAPS

STREAMLINE TANK CONFIGURATIONS BY ELIMINATING EXTRA VENTS

  • Integrated venting/breather option

SECURE YOUR DEF TANK

  • Standard anti-theft lock & key
  • Integrated lanyard to avoid lost caps

ENSURE NO SPILLS WITH ROLL-OVER PROTECTION

  • Integrated 1µ air filter and patented DEF membrane
DEF Cap Configurations
  • Vented, Locking
  • Vented, Non-Locking
  • Non-Vented, Non-Locking

DEF AccessoriesTank Adapters and Strainers

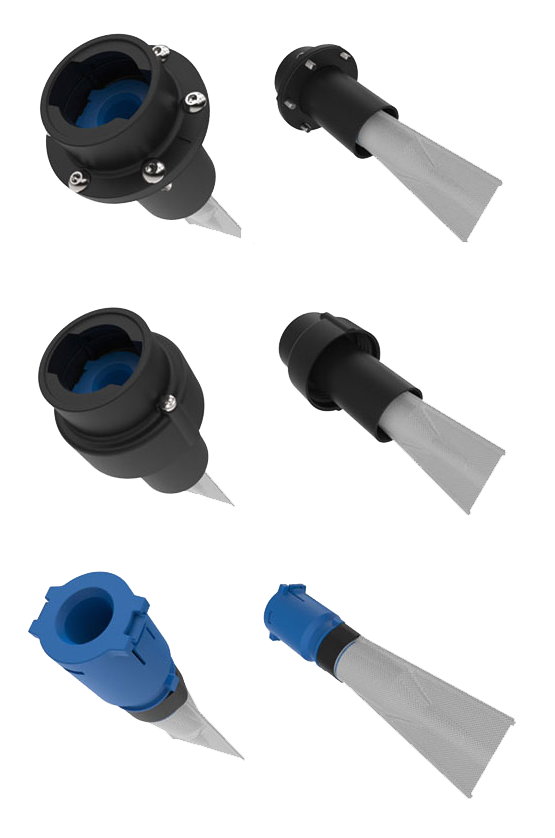

DEF Tank Adapters

KEEP YOUR SYSTEM RUNNING LONGER AND MORE RELIABILY WITH PATENTED INLET PORT FILTER DESIGN

  • Industry leading 10 gram holding capacity
DEF Tank Adapter and Strainer options
  • 6-Bolt interface
  • Buttress Thread interface
  • With or without fill port strainer

DEF AccessoriesRemote Fill

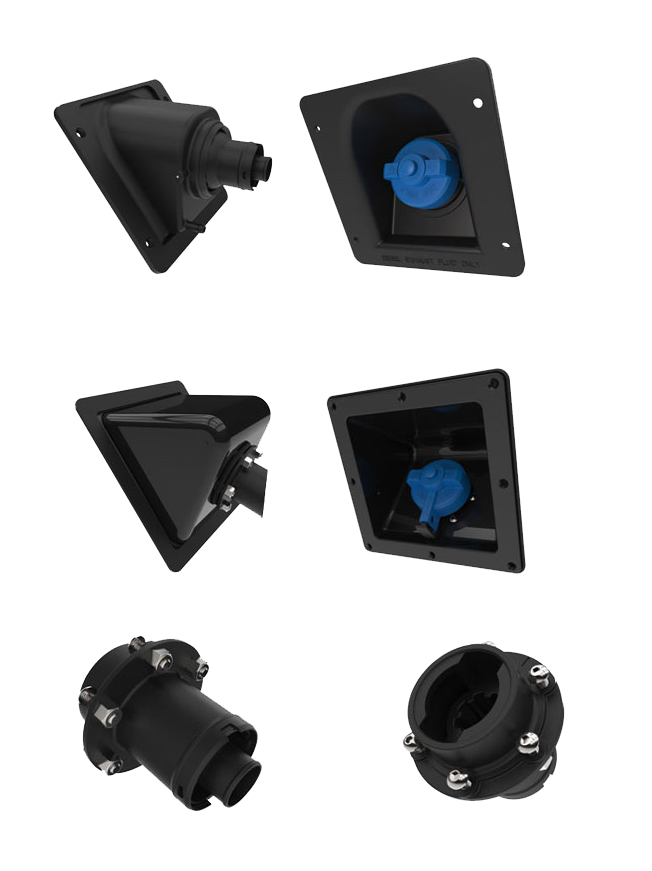

DEF Remote Fill

ENABLE EASY REMOTE FILL ACCESS TO DEF TANKS

  • ISO 22241-4 magnetic fill interface
  • Pivoting action for ease of remote fill hose
  • Compatible with 50mm ID DEF hose
  • Composite design
  • Integrated mounting holes to attach securely to platform exterior
Remote Fill Options
  • Locking Vented Cap
  • Non-Locking Vented Cap
  • Polymer or Metallic Lanyard
